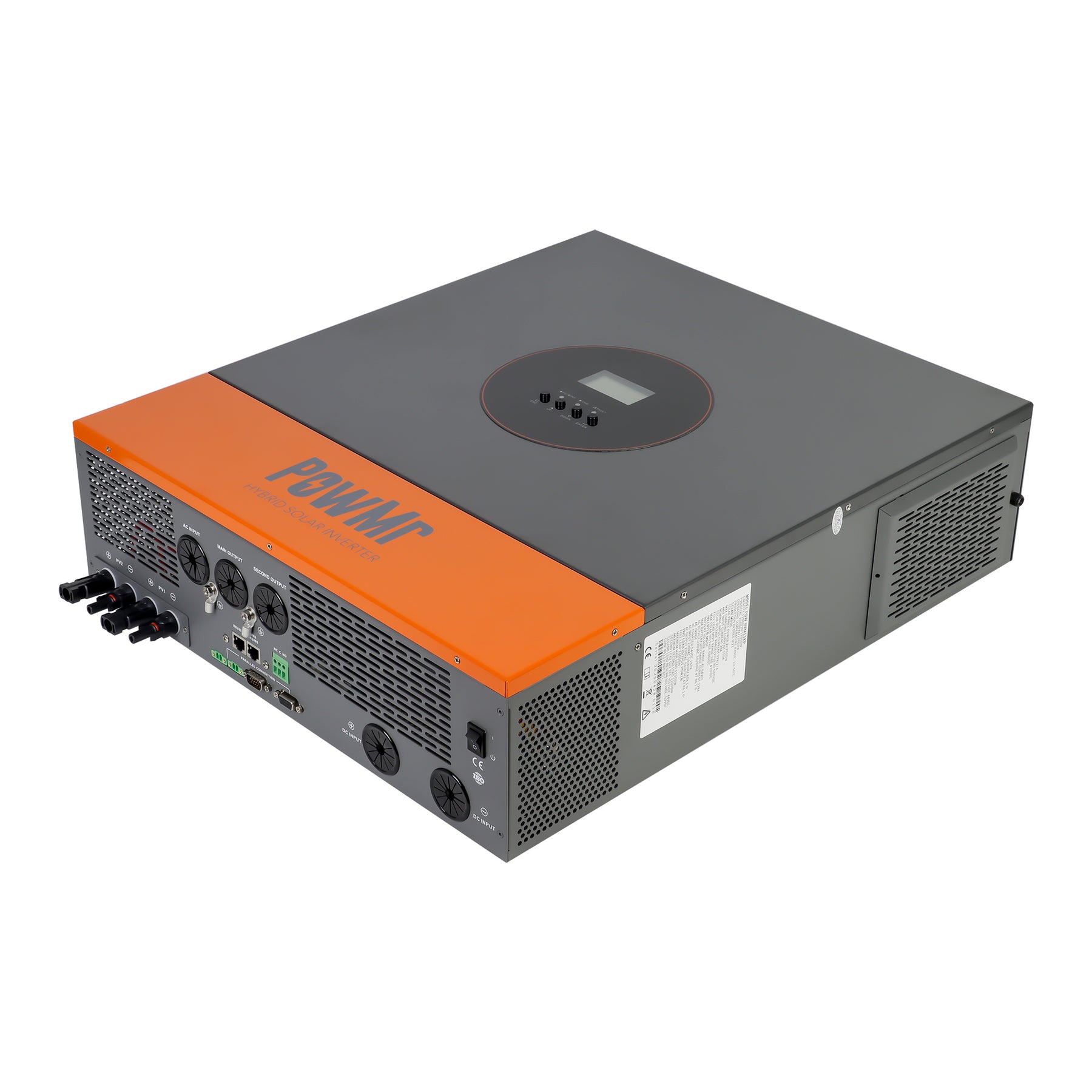

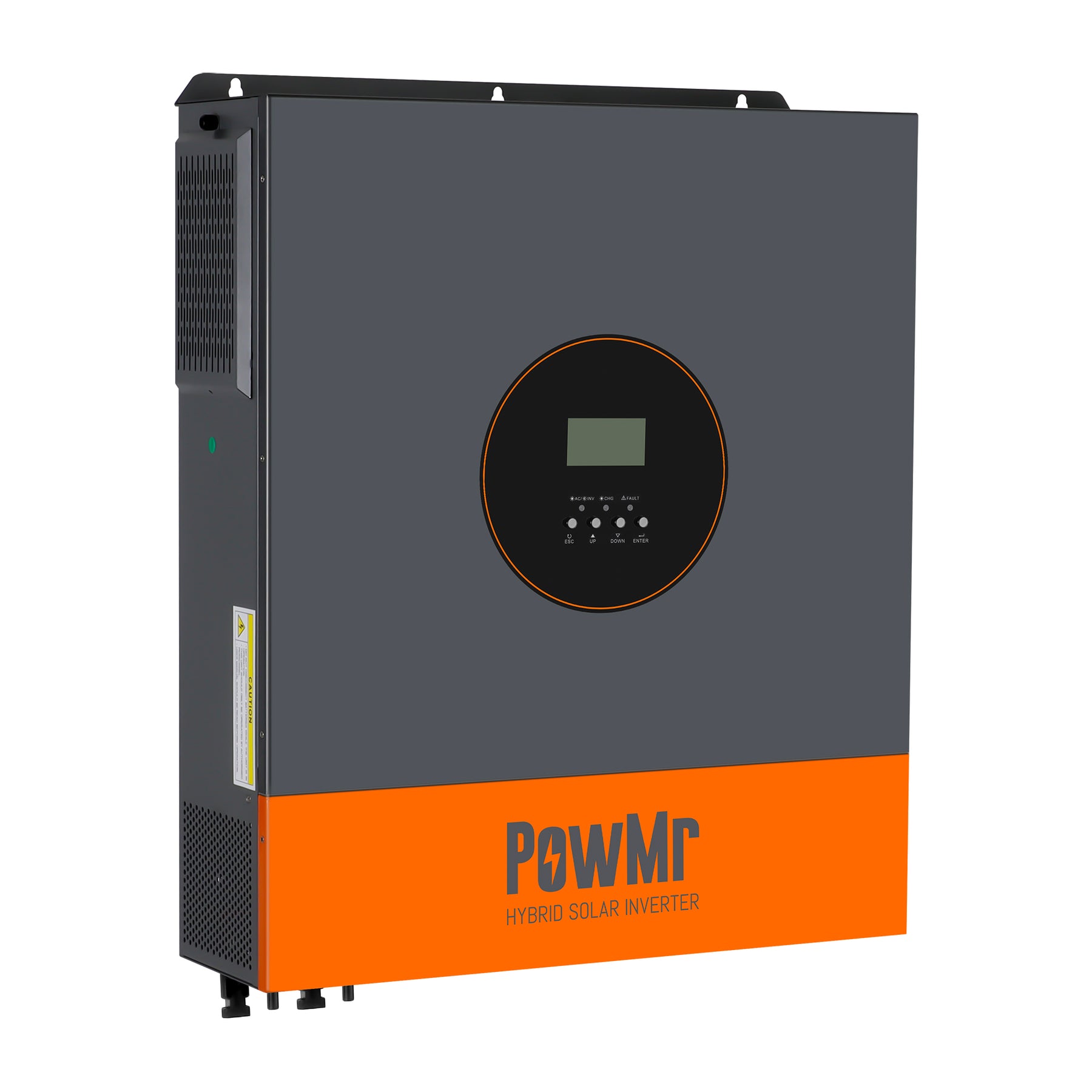

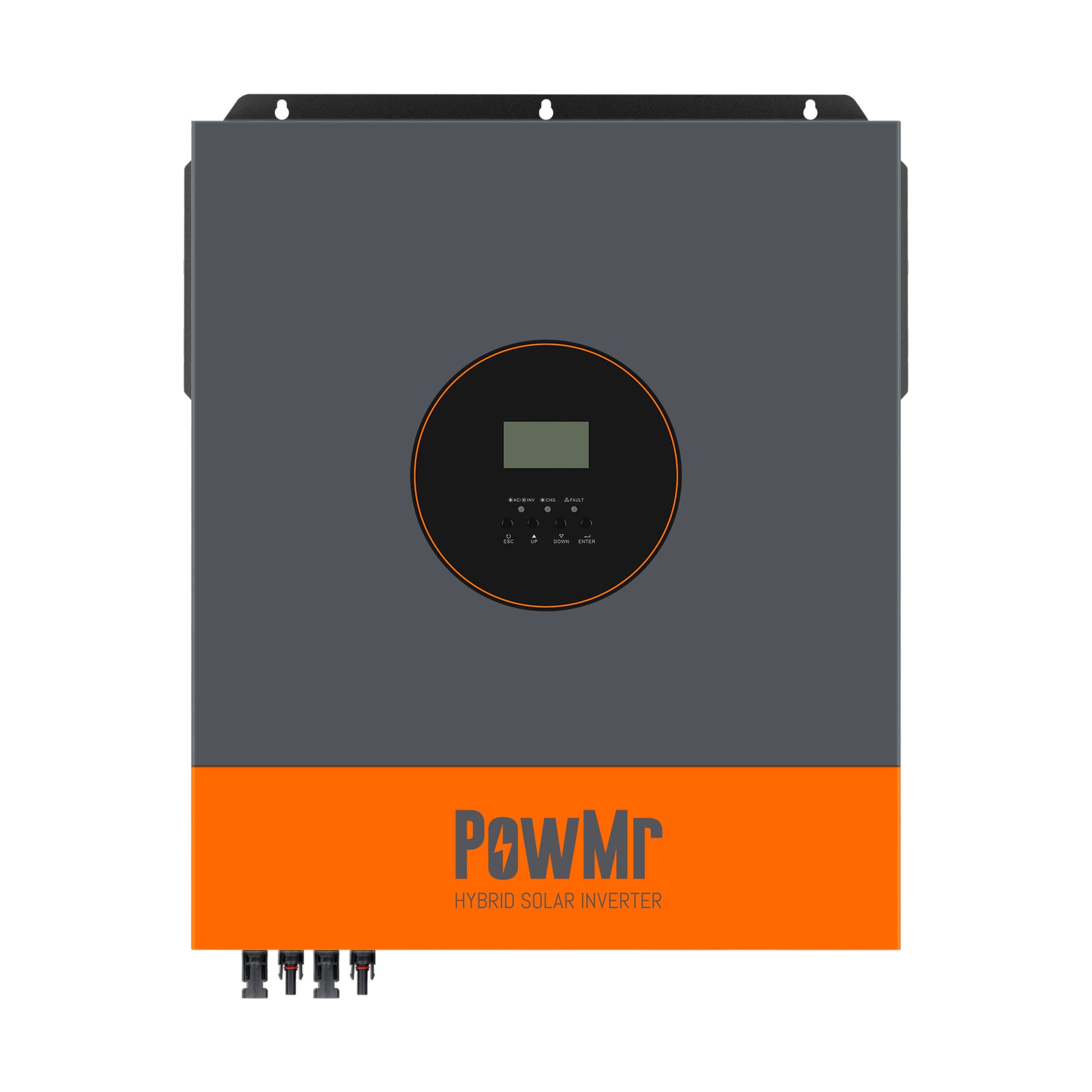

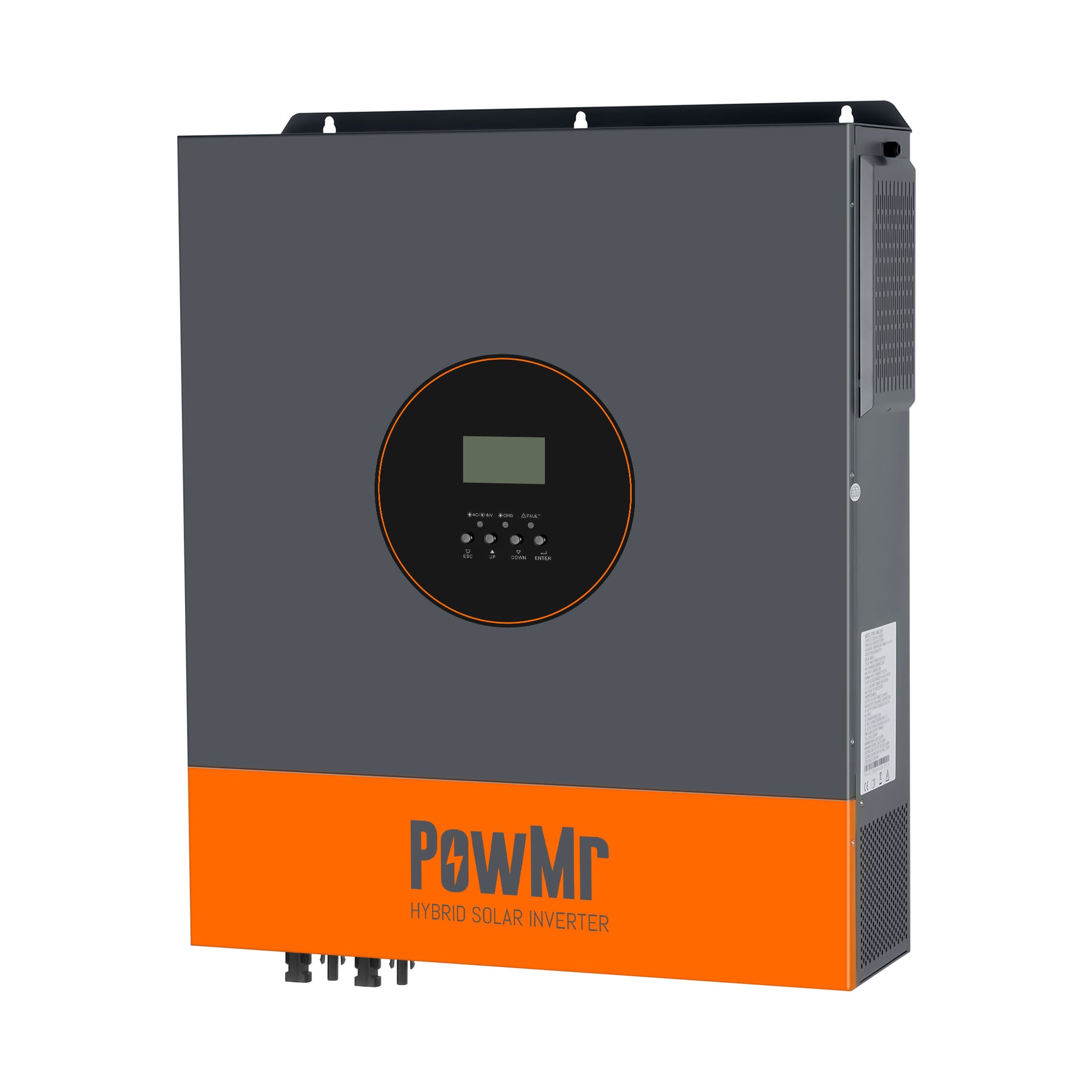

11KW 220Vac 48Vdc All In One Solar Inverter Supports 9 Units in Parallel

POW-HVM11KP

$829.00
/
  • In stock, ready to ship
  • Backordered, shipping soon

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

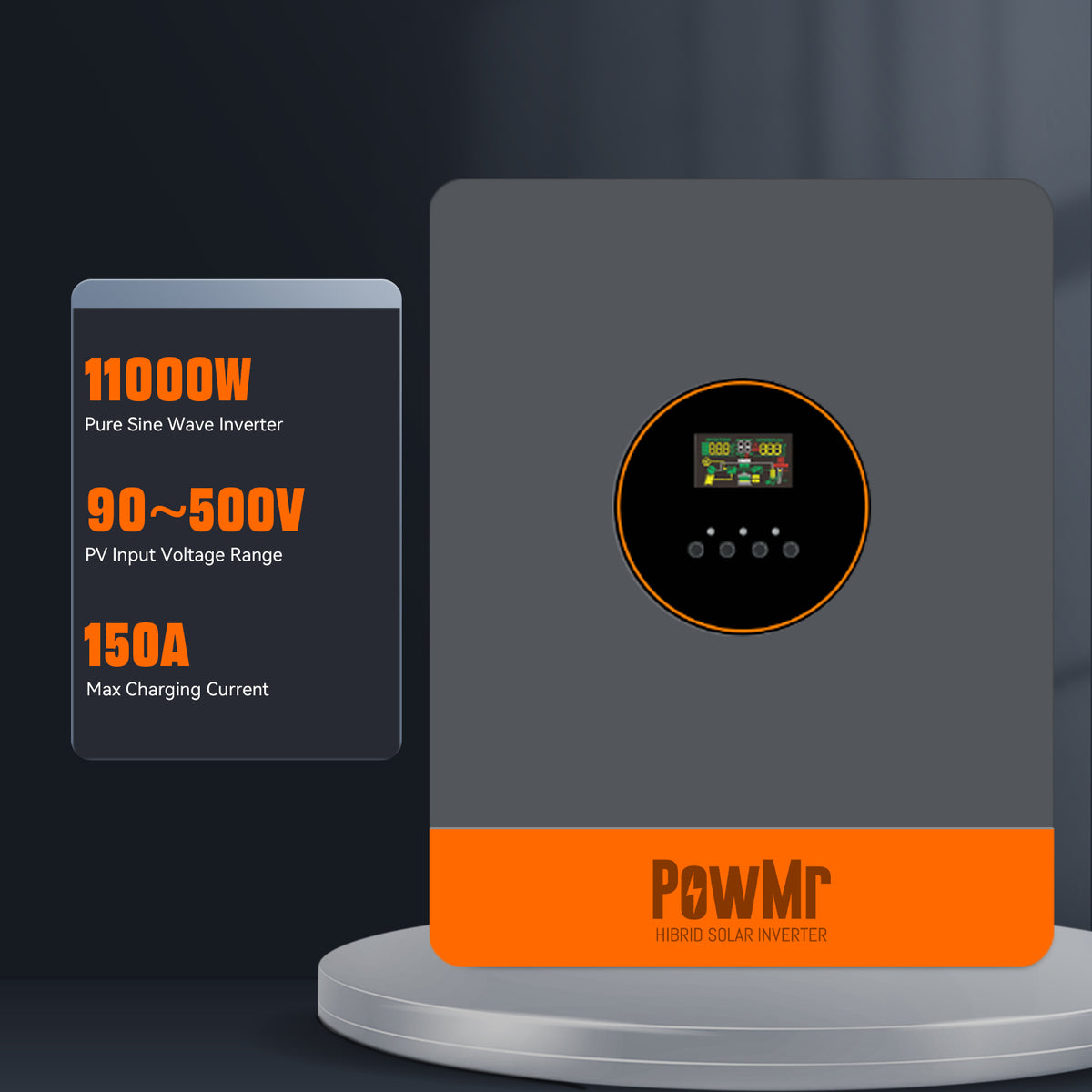

11KW Pure Sine Wave Inverter Charger

Deliver 11 kW power with an integrated inverter, charge controller, and AC charger. Supports bi-directional 48 V DC to 240 V AC conversion with pure sine wave output, ensuring reliable performance for demanding appliances and sensitive electronics.

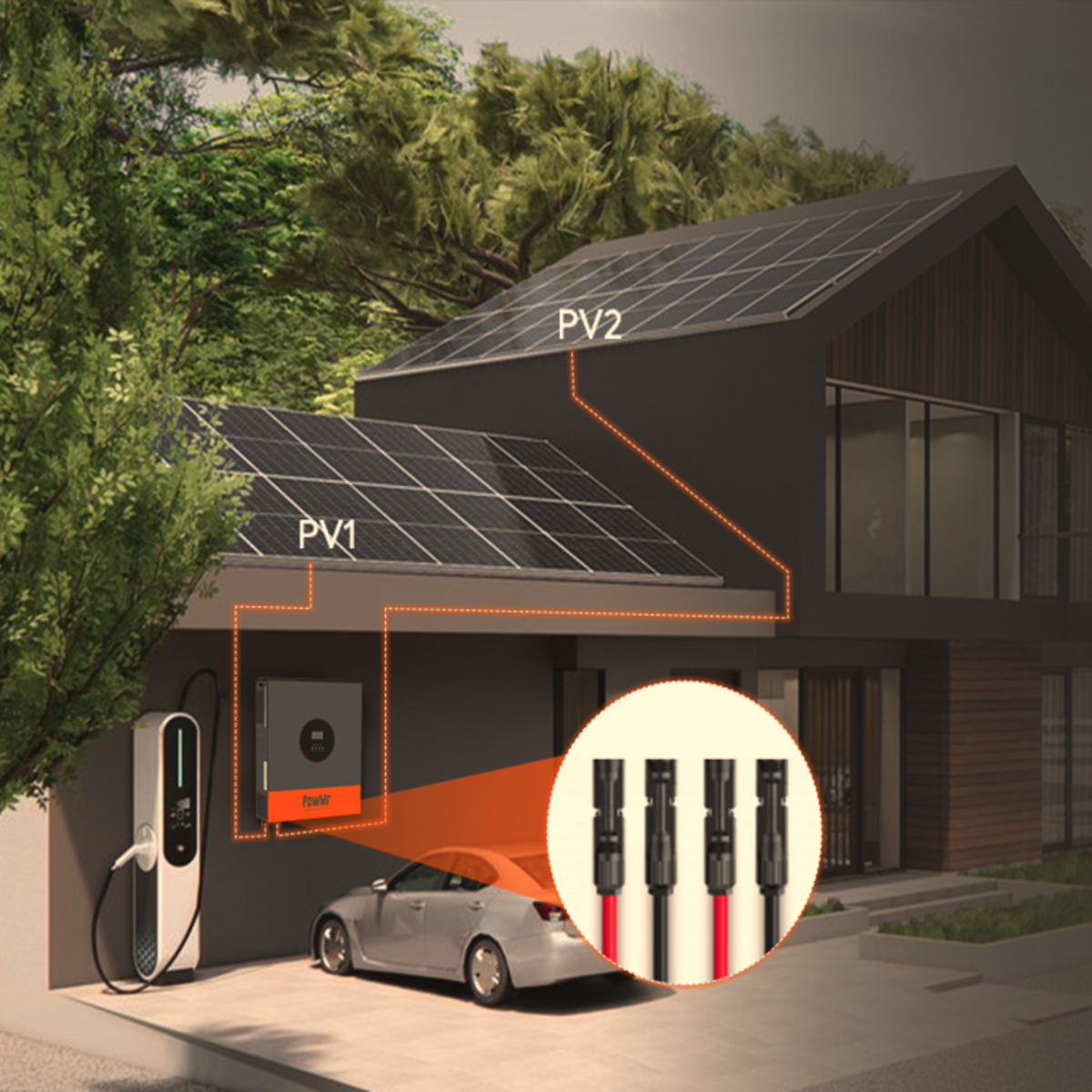

Dual MPPT Solar Charge Controllers

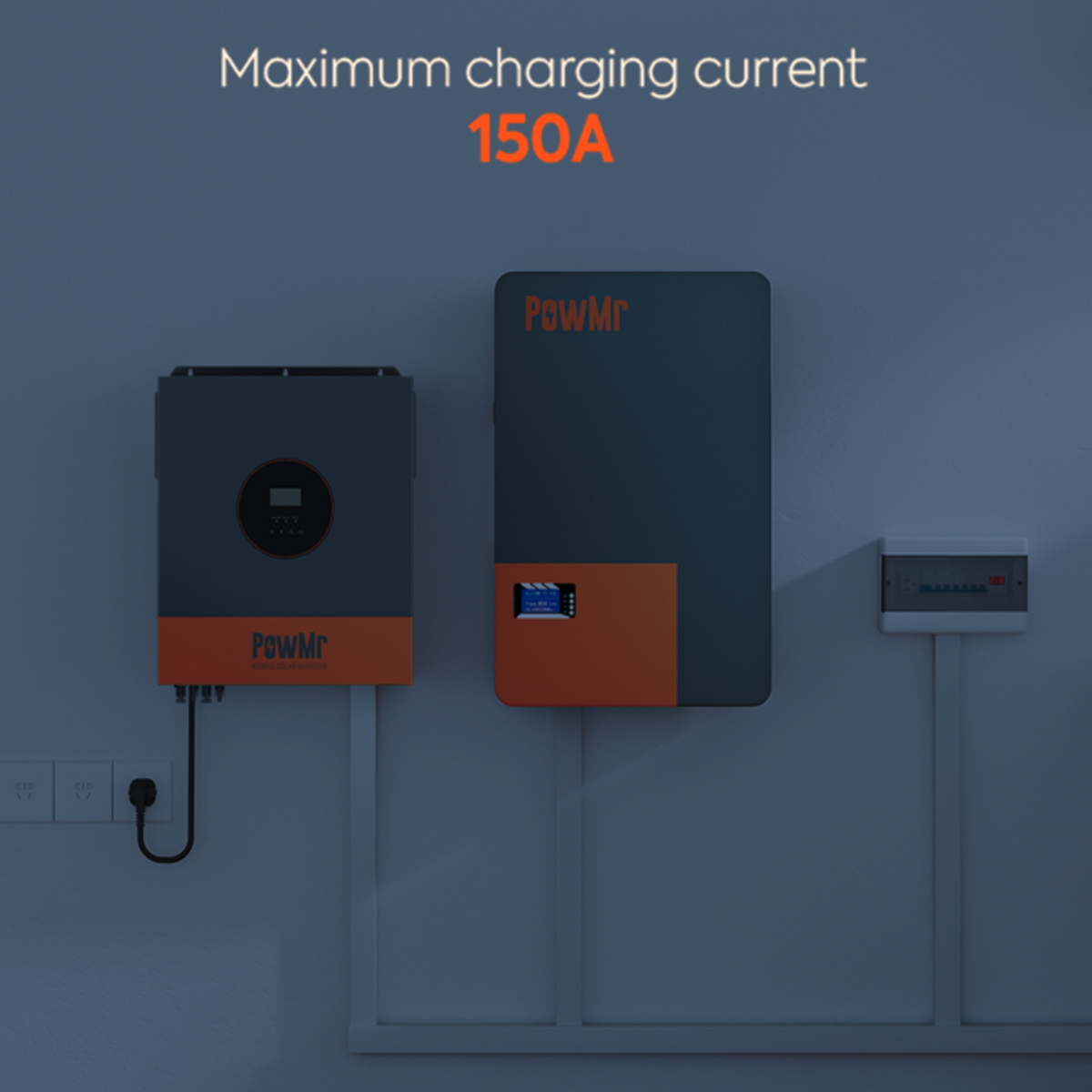

Featuring dual independent MPPT controllers with 150 A total charging capacity, this inverter maximizes solar energy harvest under varied panel orientations, tilt angles, or shading, with MC4 plug-and-play connections for fast and convenient installation.

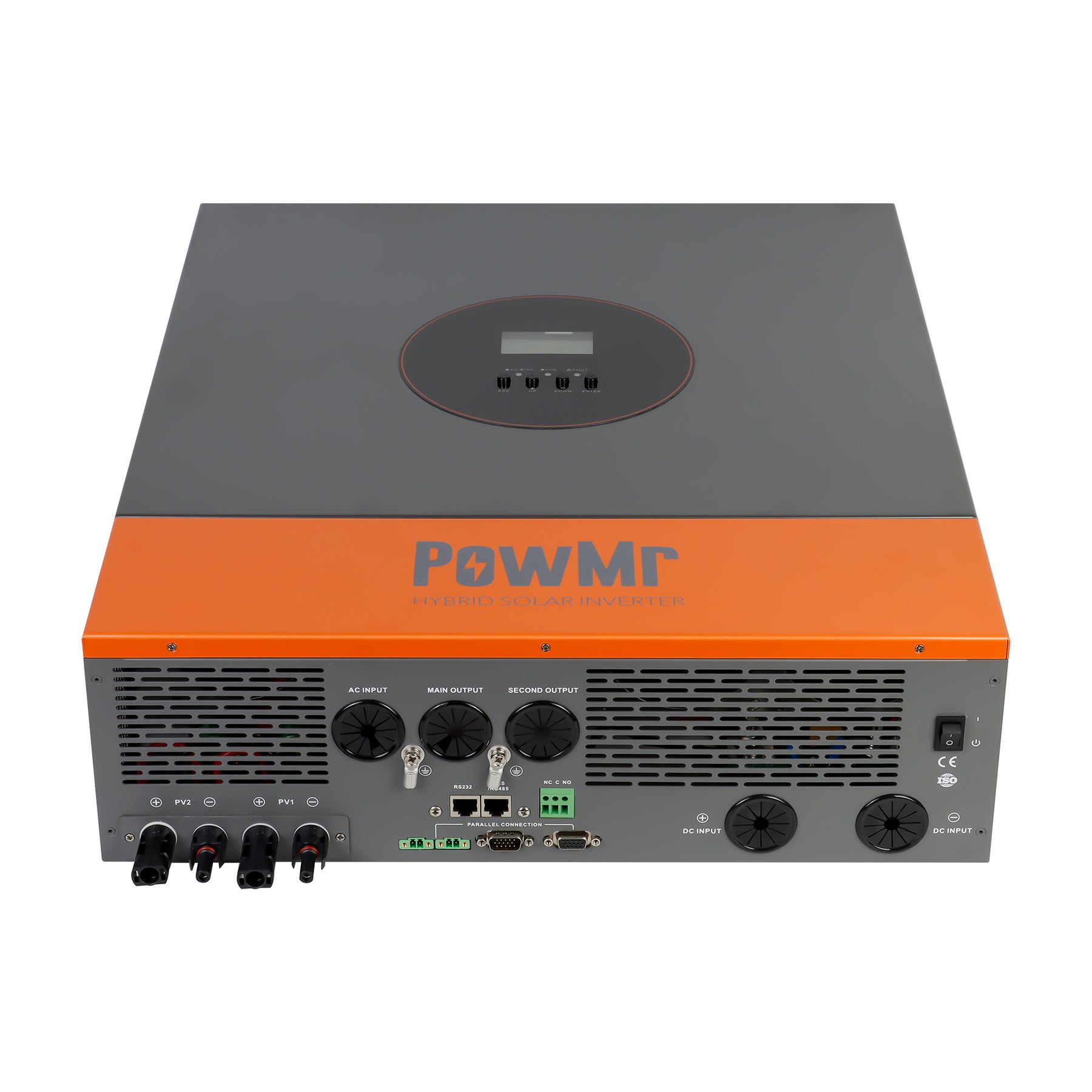

Dual AC Outputs for Flexible Energy Distribution

Prioritize energy distribution to critical loads using the two independent AC outputs, ensuring essential appliances stay powered while secondary loads disconnect automatically during shortages, delivering reliable power and improved system efficiency.

Scalable Parallel Expansion Up to 9 Units

Supports parallel operation of up to 9 units, scaling total power capacity to 99 kW. Three-phase output can be enabled when 3–9 units are connected, making it ideal for households, commercial spaces, or industrial systems that require flexible and expandable energy solutions.

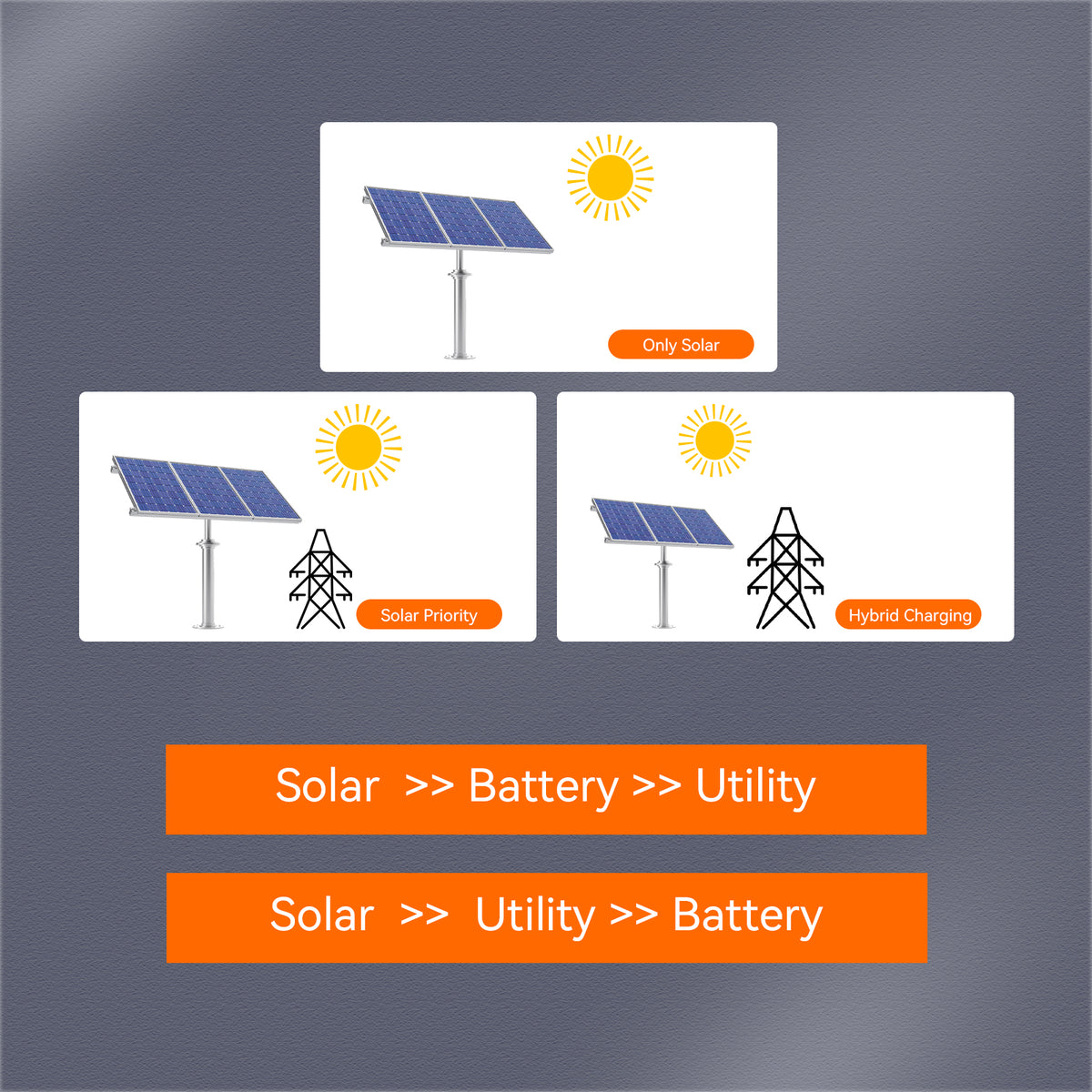

Three Charging Modes

Maximize solar energy and improve charging efficiency with three flexible modes. Choose Solar First to prioritize solar energy, Solar and Utility for hybrid charging, or Only Solar to use solar exclusively.

Specifications

Parameters Value
Rated Load Power (W) 11000
AC Output (V) 220 (±5% Ajustable)
DC Output (V) 48
Phase Single Phase, Three Phase (in Parallel Connection)
PV Array MPPT Voltage Range (V) 90-500 (Max. PV Array Open Circuit Voltage: 500V)
Max Solar Panel Input Power (W) 7500/7500
Parallel Capability (Units) 9
